How a part is represented

You have just run a conversion where every part came out exact, which is a good outcome but not an automatic one. It is worth understanding what the converter was choosing between, because on a real detector those choices decide both how faithful your simulation is and how fast it runs.

The difficulty is that CAD and TGeo describe solids in different languages. CAD describes a body by its boundary surfaces — this face is a piece of a cylinder, trimmed by these curves. TGeo describes a body by combining primitives — a tube minus a box, say. Neither language is a superset of the other, so there is no single translation that always works. The converter therefore carries three different answers and picks the best available one for each leaf solid independently.

The three are complementary rather than competing, and all of them end up in the same geom.C. Nothing is ever lost along the way: a part that resists exact description still ships as a mesh, so a conversion always produces a complete geometry.

The difference is easiest to see rather than describe. Below, the same model is converted twice: once to triangles alone at a coarse tolerance, and once with the full cascade, coloured by which tier carried each part.

Tessellated only	The cascade, by tier

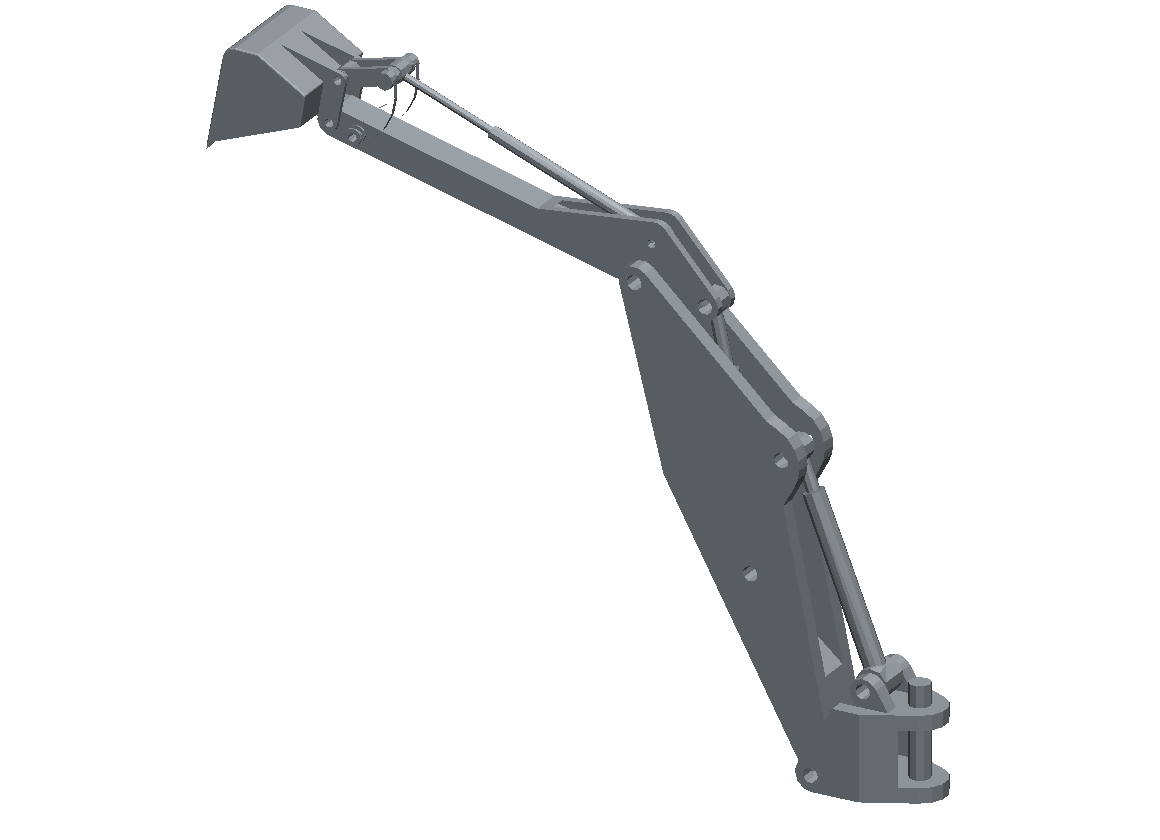

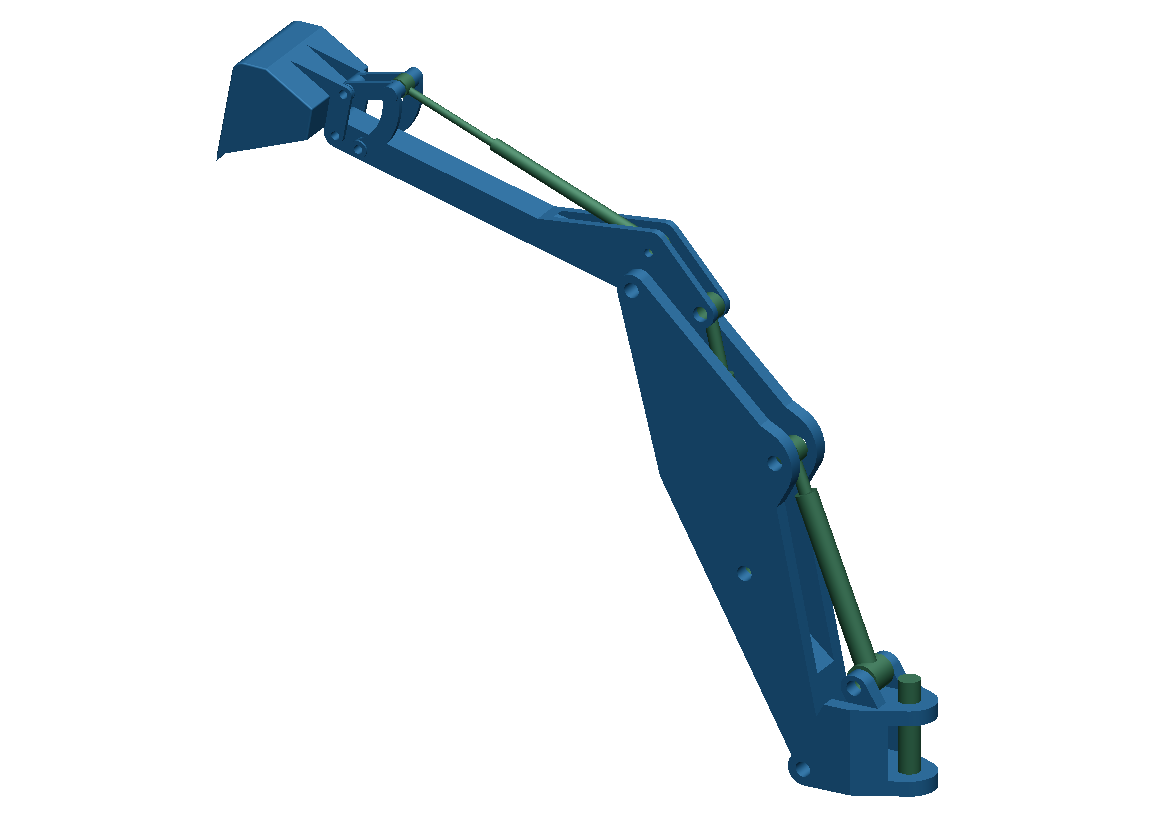

On the left the cylinders have visibly polygonal silhouettes and flat shading bands — that is the approximation you are accepting. On the right the rams and pivot pins were recognised as unions of tubes and the machined bodies carried as their exact trimmed surfaces, so the curves are curves. Both images are cast through the TGeo navigator with the same camera.

In practice one asks for all three and lets the converter decide, which is what the auto values in the earlier command did. Each of --csg and --exact-surfaces accepts three settings, and the third is more useful than it looks:

• off — never use this tier. This is the default for both, so a bare conversion gives you meshes only, which is the left-hand picture above.
• auto — use it wherever it is accepted, and fall through quietly elsewhere.
• required — stop with a report if any part cannot be represented this way. Use it when you want to know your geometry is exact rather than hope so.

One thing to trust here: a part is only accepted as CSG when OpenCascade's symmetric-difference volume against the original solid falls inside the model's own tolerance. The recogniser is never allowed to be approximately right, which is why dV_sym=0 keeps appearing in the evidence column.

Mesh precision, and one way to fill a disk

When a part does fall through to the mesh tier, --mesh-prec sets both the linear deflection (in model units) and the angular deflection (in radians) of the mesher: lower is finer and slower. For a desk-scale part 0.05 is a reasonable default. For anything metre-scale you should be careful, because the cost grows quickly with size — the default 0.1 applied to a two-metre sphere has produced a 22.9 GB output directory. The right move for large models is to leave --mesh off entirely and let the two exact tiers carry them.
