Track selection and propagation

Track Selection

The track selection in the O2 analysis framework is provided in form of a stand-alone workflow that you can run in front of your analysis:

o2-analysis-trackselection | o2-analysis-myTask

Based on a set of track quality criteria, the track selection workflow produces a flag. Provided that the user uses the standard supported o2-analysis-trackselection track tables can be filtered, e.g. by requiring global tracks (with cuts on pT and eta), in the following manner:

#include "Analysis/TrackSelectionTables.h"
   ...
// NB: this only works provided that you use the supported task o2-analysis-trackselection to perform the track selection
Filter filter1 = requireTrackCutInFilter(TrackSelectionFlags::kTPCNCls); // General filter, defined using flags
Filter filter2 = requireQualityTracksInFilter();                         // Predefined filter, for kQualityTracks tracks
Filter filter3 = requirePrimaryTracksInFilter();                         // Predefined filter, for kPrimaryTracks tracks
Filter filter4 = requireInAcceptanceTracksInFilter();                    // Predefined filter, for kInAcceptanceTracks tracks
Filter filter5 = requireGlobalTrackInFilter();                           // Predefined filter, for kGlobalTrack tracks
Filter filter6 = requireGlobalTrackWoPtEtaInFilter();                    // Predefined filter, for kGlobalTrackWoPtEta tracks
Filter filter7 = requireGlobalTrackWoDCAInFilter();                      // Predefined filter, for kGlobalTrackWoDCA tracks
Filter filter8 = requireTrackWithinBeamPipe();                           // Tracks starting from within the beam pipe

void process(soa::Filtered<soa::Join<aod::Tracks, aod::TrackSelection>>::iterator const& track)
{
   ...
}

In general it is advised to use the filter decisions only in the filter expressions, so the framework can optimize the processing. However, if really needed you can also access the filtering decisions in the following way:

#include "Analysis/TrackSelectionTables.h"
   ...

void process(soa::Join<aod::Tracks, aod::TrackSelection>::iterator const& track)
{
   // Check single cuts
   track.passedTrackType();             // Passed the track cut: kTrackType
   track.passedPtRange();               // Passed the track cut: kPtRange
   track.passedEtaRange();              // Passed the track cut: kEtaRange
   track.passedTPCNCls();               // Passed the track cut: kTPCNCls
   track.passedTPCCrossedRows();        // Passed the track cut: kTPCCrossedRows
   track.passedTPCCrossedRowsOverNCls();// Passed the track cut: kTPCCrossedRowsOverNCls
   track.passedTPCChi2NDF();            // Passed the track cut: kTPCChi2NDF
   track.passedTPCRefit();              // Passed the track cut: kTPCRefit
   track.passedITSNCls();               // Passed the track cut: kITSNCls
   track.passedITSChi2NDF();            // Passed the track cut: kITSChi2NDF
   track.passedITSRefit();              // Passed the track cut: kITSRefit
   track.passedITSHits();               // Passed the track cut: kITSHits
   track.passedGoldenChi2();            // Passed the track cut: kGoldenChi2
   track.passedDCAxy();                 // Passed the track cut: kDCAxy
   track.passedDCAz();                  // Passed the track cut: kDCAz
   // Check combiation of cuts (filterbit like)
   track.isQualityTrack();       // Passed the combined track cut: kQualityTracks
   track.isPrimaryTrack();       // Passed the combined track cut: kPrimaryTracks
   track.isInAcceptanceTrack();  // Passed the combined track cut: kInAcceptanceTracks
   track.isGlobalTrack();        // Passed the combined track cut: kGlobalTrack
   track.isGlobalTrackWoPtEta(); // Passed the combined track cut: kGlobalTrackWoPtEta
   track.isGlobalTrackWoDCA();   // Passed the combined track cut: kGlobalTrackWoDCA
}

Some of the track parameters used in the track selection require additional calculation effort and are then stored in a table called TracksExtended which is produced by either the o2-analysis-trackextension task (Run 2) or o2-analysis-track-propagation (Run 3). The quantities contained in this table can also be directly used in the analysis. For instance if you require the distance of closest approach (dca) to the primary vertex, you do not need to (and should not!) re-calculate it in your task. You can simply obtain it by extending the Tracks table in the following way and then access it directly as a property of the track:

void process(soa::Filtered<soa::Join<aod::Tracks, aod::TrackSelection, aod::TracksDCA>>::iterator const& track)
{
  track.dcaXY();
  track.dcaZ();
}

Both the definition of TrackSelection and the TracksDCA tables can be found here: TrackSelectionTables. If you want to have a look at the track parameters after the selection, you can use the o2-analysis-qa-event-track task:

o2-analysis-trackselection | o2-analysis-qa-event-track | ...

At the moment there are two ‘FilterBits' available in the TrackSelection table, which are defined as follows:

The goal of the track selection task is to provide the most common selections for all analyses. If you really require a completely different set of tracks not covered by the standard filter bits, you can create your own TrackSelection object (see TrackSelectionTables.h and trackselection.cxx) :

TrackSelection myTrackSelection()
{
  TrackSelection selectedTracks;
  selectedTracks.SetTrackType(aod::track::Run2GlobalTrack);
  selectedTracks.SetPtRange(0.1f, 1e10f);
  selectedTracks.SetEtaRange(-0.8f, 0.8f);
  selectedTracks.SetRequireITSRefit(true);
  selectedTracks.SetRequireTPCRefit(true);
  selectedTracks.SetRequireGoldenChi2(true);
  selectedTracks.SetMinNCrossedRowsTPC(70);
  selectedTracks.SetMinNCrossedRowsOverFindableClustersTPC(0.8f);
  selectedTracks.SetMaxChi2PerClusterTPC(4.f);
  selectedTracks.SetRequireHitsInITSLayers(1, {0, 1}); // one hit in any SPD layer
  selectedTracks.SetMaxChi2PerClusterITS(36.f);
  selectedTracks.SetMaxDcaXYPtDep([](float pt) { return 0.0105f + 0.0350f / pow(pt, 1.1f); });
  selectedTracks.SetMaxDcaZ(2.f);
  ...
  return selectedTracks;
}

...

// member of analysis task
TrackSelection mySelection;

...

// in init()
mySelection = myTrackSelection();

...

// in process()
bool isSelected = mySelection.IsSelected(track)

Remarks on track selection

Please note that this documentation only represents the status quo of the track selection implementation and many things can and will change. In particular the cut values will most likely change with the ‘new' detector in Run 3 and some of the legacy cuts will be removed or only available for converted Run 2 data. In case of questions or suggestions don't hesitate to contact us.

Track Propagation

The Run 3 AO2D stores the tracks at the point of innermost update. For a track with ITS this is the innermost (or second innermost) ITS layer. For a track without ITS, this is the TPC inner wall or for loopers in the TPC even a radius beyond that. In the AO2D.root the trees are therefore called O2tracks_IU and O2tracksCov_IU (IU = innermost update). The corresponding O2 data model tables are TracksIU and TracksCovIU, respectively. If your task needs tracks at the collision vertex it will fail because it looks for O2tracks and O2tracksCov.

In order to propagate the tracks to the collision vertex, include the task o2-analysis-track-propagation into your workflow. This task produces the tables Tracks and TracksCov (in order to get the latter, please enable processCovariance through the json configuration).

This task is not needed for Run 2 converted data where the tracks are already propagated to the collision vertex.

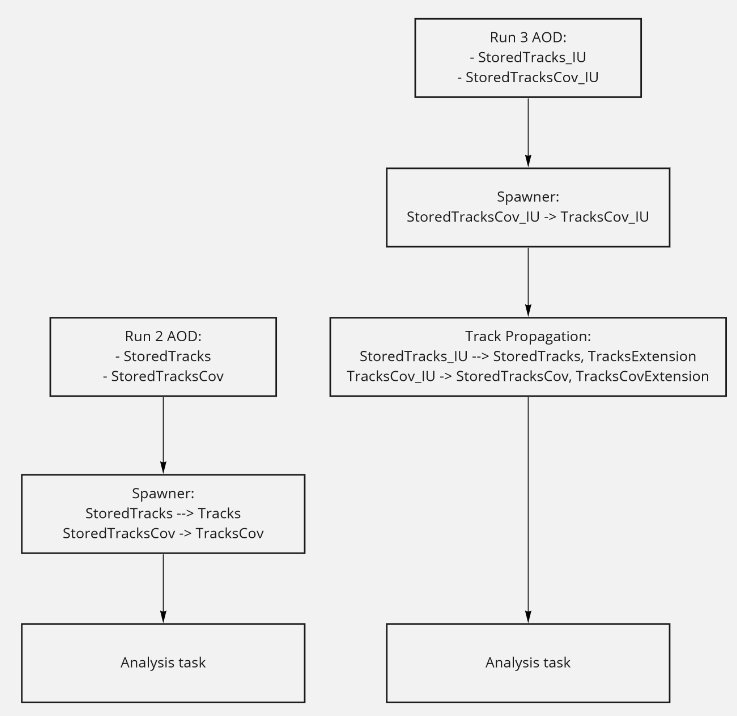

The overall table flow is illustrated here:

The TrackTuner class

The TrackTuner class (Common/Tools/TrackTuner.h) allows to smear the reconstructed track parameters. Such tool is primarely conceived to smear the parameters of tracks reconstructed in MC simulations according to the discrepancy between data and MC of the dcaXY and dcaZ.

The smearing is done on the y, z parameters of each reconstructed track in MC evaluated at the associated particle production point. The smearing is based on the discrepancy between resolution, mean and pull ratio of dcaXY, dcaZ w.r.t. primary vertex measured in data and MC. The performance of such parameters is evaluated vs. global-track pt and stored into .root files, which can be read from CCDB at runtime.

An instance of the TrackTuner class is present as data-member in the trackPropagation workflow, and it can be enabled via

Configurable<bool> useTrackTuner{"useTrackTuner", false, "Apply Improver/DCA corrections to MC"};

This object can be configured through the Configurable<std::string> trackTunerParams in the trackPropagation workflow. This configuration std::string must define the following parameters:

• bool debugInfo: flag to switch on/off some debug outputs
• bool updateTrackDCAs: flag to switch on/off the smearing of the dcaXY, dcaZ
• bool updateTrackCovMat: flag to enable the update of the track covariance matrix, propagating the scaling on the dca resolution
• bool updatePulls: flag to enable the update of the track covariance matrix updating also the pulls (if updateTrackCovMat == true)
• std::string pathInputFile: path to browse to find the correction file for the dca smearing
• std::string nameInputFile: name of the correction file for the dca smearing
• bool isInputFileFromCCDB: the pathInputFile/nameInputFile is searched in CCDB if this flag is true, otherwise in the local file system (debug purposes)
• bool usePvRefitCorrections: if this flag is true, the track smearing is performed using mean, resolution and pulls parametrizations vs. pt of dcaXY, dcaZ calculated w.r.t. primary collision vertex refitted w/o the current track, if this was originally a PV contributor
  Note

  In pp collisions, there is a difference between usePvRefitCorrections == true and usePvRefitCorrections == false. In the former case, the parametrizations are obtained after refitting the primary vertex by removing from its fit the probe track, if it was originally a contributor.This is not relevant in Pb-Pb collisions.

• std::string pathFileQoverPt: path to browse to find the correction file for the q/pt smearing
• std::string nameFileQoverPt: name of the correction file for the q/pt smearing
• bool updateCurvature: flag to enable the update of the track curvature, i.e. q/pt, at the particle production point
• bool updateCurvatureIU: flag to enable the update of the track curvature, i.e. q/pt, at the innermost update (IU) point
• float oneOverPtMC (MC) and float oneOverPtData (data): the ratio oneOverPtData/oneOverPtMC defines the scaling factor to the q/pt residual to smear the track pt
• bool fillTrackTunerTable: flag to enable the filling of a new table containing for each track the smeared q/pt at the IU point
• int nPhiBins: number of phi intervals in which the parametrizations are provided. The currently-supported cases are nPhiBins=0 (phi integrated) and nPhiBins=24 (24 phi bins)

The string trackTunerParams must follow the format: <variable_name>=<value>|<variable_name>=<value> (see the default configuration here as reference).

The dcaXY, dcaZ parametrization currently available are the following:

• proxy for pp @ 13.6 TeV: trackTuner_DataLHC23hPass4_McLHC23k4g.root Data: LHC23h apass4. MC: LHC23k4g. Slides here.
• proxy for pp @ 13.6 TeV in 24 phi intervals: trackTuner_DataLHC23pass4ThinSmall_McLHC23k4gSmall.root Data: LHC23_pass4_thin_small, runs 535613, 535621, 535623, 535624, 535627, 535644, 535645, 535711, 535716, 535721, 535725 MC: LHC24k4g_small, runs 535613, 535621, 535623, 535624, 535627, 535644, 535645, 535711, 535716, 535721, 535722, 535725 Slides here
• proxy for Pb-Pb @ 5.36 TeV: trackTuner_DataLHC22sPass5_McLHC22l1b2_run529397.root Data: LHC22s apass5, run 529397. MC: LHC22l1b2, run 529397. Slides here.
• proxy for PbPb @ 5.36 TeV in 24 phi intervals: trackTuner_DataLHC24zzh_apass4_McLHC24e2_MCflat13.root Data: LHC23zzh_apass4 MC: LHC24e2
